#South Korea #Seoul #Uniqconn #UC LINK #UC60S10

Uniqconn Unveils the Future of Wireless Data Transmission

In a groundbreaking development in the world of connectivity solutions, South Korean company Uniqconn has launched its cutting-edge wireless data transmission technology, the UC60S10. This innovative product merges semiconductor and millimeter-wave wireless communication technologies to eliminate the need for physical cables and connectors, offering a wireless high-speed data transmission solution for industries such as robotics, factory automation, and medical equipment.

Revolutionizing Connectivity

The UC60S10 enables data transmission speeds of up to 6Gbps in short-range environments. With traditional wired connections, using cables and connectors has often limited design flexibility and increased maintenance burdens. By introducing wireless connectivity, Uniqconn aims to improve operational efficiency and reduce operational costs across various sectors.

The Challenges with Traditional Wired Connections

Previously, wired connectivity posed several challenges:

• - Signal Loss: As data transmission speeds increased, more significant signal loss occurred due to skin effect, leading to diminished data quality. This demanded the use of high-performance materials and advanced manufacturing processes, significantly raising production costs.
• - Electromagnetic Interference (EMI): Wired solutions were susceptible to interference from electromagnetic emissions in the 1-9GHz range, affecting the quality of the transmitted signal. This led to additional costs for noise mitigation and altered production workflows.
• - Mechanical Constraints: Physical connectors are subject to wear and tear, are vulnerable to environmental factors such as moisture and dust, and require precise alignment, which complicates equipment design and operation.

Key Features of the UC60S10

The UC60S10 resolves these issues with several key features:

• - Ultra-fast, Low-latency Transmission: The system effectively delivers data transmission speeds exceeding 5Gbps. Testing shows a total jitter of just 0.35UI at 6Gbps over a 1cm distance, while at 10Gbps, the jitter remains low at 0.44UI.
• - Flexible Communication Methods: Utilizing patch antennas and polymer tube transmission media, the UC60S10 can flexibly adjust to various operational needs, enabling communication distances of up to 15m.

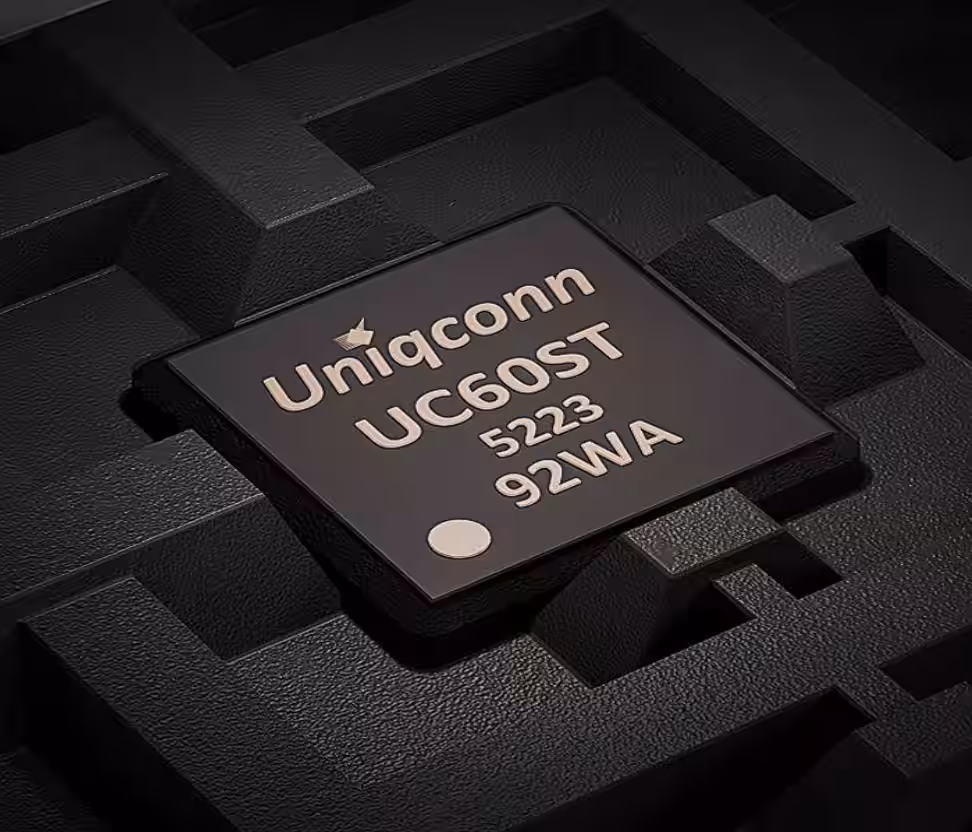

• - Compact and Energy-efficient Design: Housed in a tiny 3.5mm x 3.5mm x 0.8mm FCBGA package, the UC60S10 consumes only 120mW in transmission mode and 87.5mW in reception mode, allowing for easy integration into devices.
• - High Environmental Resilience: By eliminating the need for mechanical connectors, the product supports greater design flexibility and operational stability. It can function across a temperature range of -20°C to 85°C.

Applications in Diverse Industries

The UC60S10 is set to have a transformative impact across various applications:

Robotics Applications:

• - Wireless Connection of Robotic Arms: By facilitating wireless connections for end effectors and grippers, the UC60S10 enhances the mobility and design flexibility of robotic arms. Moreover, it minimizes wear on physical contact points, thereby simplifying the swapping of end effectors, which boosts operational efficiency and reduces costs.
• - Replacing Slip Rings: In robotic joints requiring 360-degree rotation, the UC60S10 can replace traditional slip rings, mitigating contact wear, lowering maintenance burdens, and extending the lifespan of robotic systems.

Modular Manufacturing Solutions:

By allowing robots to be modular in design, the UC60S10 enables the commonization of main arms while permitting easy swaps of end effectors tailored to specific manufacturing lines or applications, thus improving operational efficiency and cutting development costs.

Wireless Debugging Enhancements:

Unifying chip-to-chip wireless communication, UC60S10 allows for wireless debugging, minimizing the need for physical access and enhancing maintenance processes while bolstering security through encryption and reducing EMI concerns.

Improved Maintenance for Medical Robotics:

In surgical support scenarios, the UC60S10 facilitates easy detachment of involved modules following operations, improving maintenance efficiency.

Uniqconn is determined to promote innovative wireless solutions across sectors, particularly with its collaboration in the Japanese market through 株式会社JASP. The partnership aims to implement UC LINK® and UC60S10 technologies, showcasing their potential benefits to local enterprises and enhancing JASP's support for these advanced solutions in Japan.

Contact Information for JASP

For further inquiries or partnerships regarding UC60S10 and other Uniqconn solutions, please reach out to:

• - Address: 3-7-1 Kasumigaseki, Chiyoda-ku, Tokyo 401, Kasumigaseki Business Center
• - Department: Device Sales and Solution Team – Zhao
• - Tel: 03-3508-4200
• - Email: [email protected]
• - Website: JASP

As the market embraces cable-free technology, the UC60S10 by Uniqconn marks a significant leap forward in the evolution of data transmission, enhancing flexibility, efficiency, and system design across numerous industries.
